Current Position:Home > Product > GEGS OCTAGONAL STAINLESS STEEL MILLING DRUM


GEGS

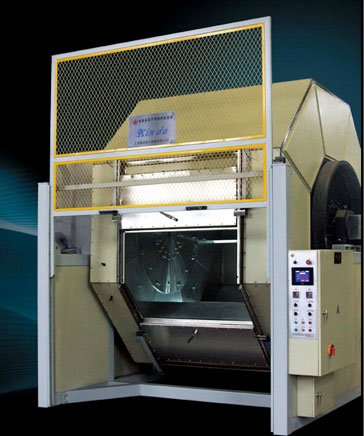

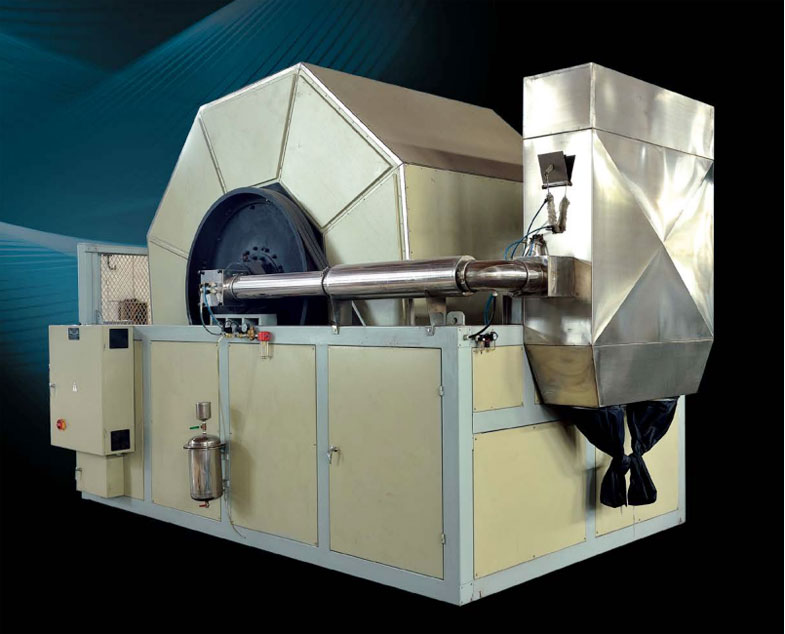

GEGS OCTAGONAL STAINLESS STEEL MILLING DRUM
MAIN CHARACTERISTICS

The octagonal stainless steel milling drum is the product of research and development on the basis of the traditional type of the cylindrical milling drum.In addition to the original functions,this type of drum has even greater capacity in softening the leather to the maximum extent.So it is another necessary equipment for the tannery to produce the high-grade soft leather.

STRUCTURE AND CHARACTERISTICS

1、For the transmission system:The drum is capable of time setting,time extension,positive(or reversion),inching and stopping.
2、For the dust-suction system:It is a closed circulating system with such a flow:the drum cavity-pipeline-fan-dust collector-pipeline-drum cavity.The dust engendered during the leather milling process can be sucked into the dust-collecting box continuously through the system,which is effective in removing the fine dust gathered by the electrostatic or other causes.




3、For the humidity control system:The humidity can be set according to different kinds of leather.Having undergone the flow of spraying humidification-humidity control and dehumifying-intermittent spraying,the leather will not only reduce caking,shrinking,curling and hardening so as to minimize the local difference but also recover the area that had been shrunk through the drying process.All this will play nice in improving the fullness,tenderness,ductility and appearance as well as visibility of texture.


4、For the temperature control system:The temperature can be set according to different kinds of leather.After the process of automatic elevation of temperature—air-change for temperature control—temperature reduction through cooling,it is good for overcoming the negative effect of the temperature at different seasons or surroundings.

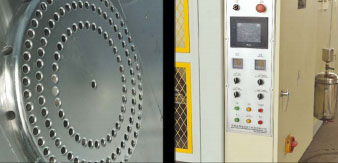

5、For the electrical system:All the technical parameters are tangible by hand at the man-machine interface and convenient for modification and adjustment so that the working condition and the variation of temperature,humidity,time and the related data can be seen at the interface.And it has multiple safety protection and alarming functions.






Model & Size GEGS-320*210
Diameter mm 3200
Width mm 2100
Volume m3 13.59
Loading capacity kg 13.59
Drum speed rpm 8-20
Motor power kw 15
Heating power kw 9
Fan power kw 3
Door size mm 1500×1000

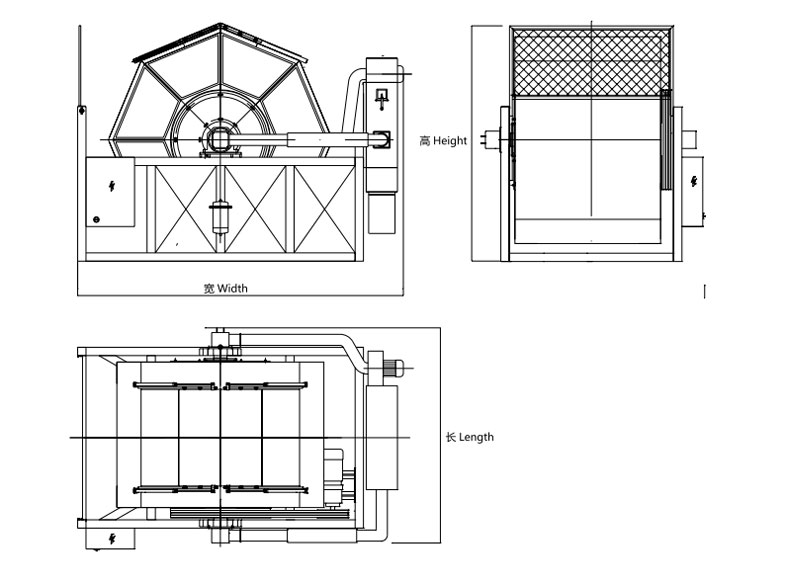

Outline dimension(Length) mm 3220
Outline dimension(Width) mm 4820
Outline dimension(Height) mm 3400
Total weight t 5.5
Previous:GEGS STAINLESS STEEL MILLING DRUM
Next Page:NEW MILLING DRUM C ONTROL SYSTEM
