Current Position:Home > Product > QXS SERIES WET SKIN HANGING CONVEYOR


QXS
QXS SERIES WET SKIN HANGING CONVEYOR
MAIN CHARACTERISTICS

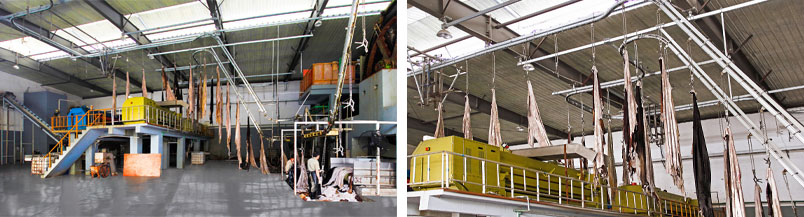

This is the high-hanging conveyor hauled by single machine applicable for various kinds of wet leather(e.g. raw hides,gray leather,wet blue skin,etc).Meanwhile,it can make single hanging leather convey to the next process for continuously processing. The biggest characteristic of this machine is that it can make full use of workshop space to convey various kinds of wet skin which has been completed in the above process one by one to the next process to continue processing.

It is possible for frequency conversion speed regulation with easy operation and high degree of automation to make sure the low labor intensity but high production efficiency so that can realize assembly line production.



MAIN TECHNICIAL PARAMETERS

1、Transmitting speed:0-9m/min
2. Speed regulation type: frequency conversion
3、Leather hanging interspace:1.2m/section(0.8m/section or 1.6m/section is feasible)
4. Max capacity of hanging leather: 60kg/section
5. Max loading capacity of conveyor chain: 50kg/m
6、Compressed air supplied by user:0.4-0.6 bar
7. Installed power: 0.55kw-1.1kw
8. Mounting dimension of rail center:max height: 7m; min height: 2m
9. Mounting dimension of rail: both height and width are due to user(perimeter range from 30m to 100m)

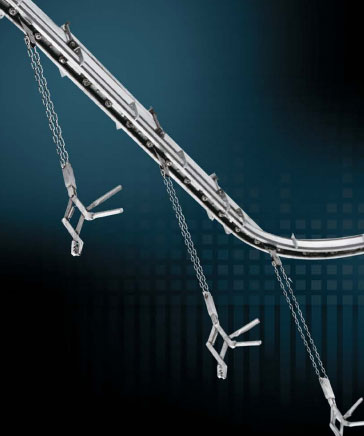

10. There are three kinds of cleat pliers applicable for raw hides, gray leather and wet blue skin.




Previous:QXS SERIES LEATHER HANGING DRIER
Next Page:GGZD3-300×12000/20000
