Current Position:Home > Product > GZGS2 TYPE INTERNAL CIRCULATION STAINLESS STEEL TEMPERATURE REGULATION TEST DRUM


GZGS2

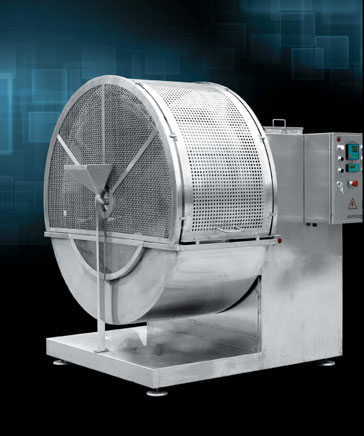

GZGS2 TYPE INTERNAL CIRCULATION STAINLESS STEEL TEMPERATURE REGULATION TEST DRUM
MAIN FUNCTION AND CHARACTERISTICS

The drum adopts self-circulating system,when the drum rotates,the self-circulating system will make the liquid which is in the drum flow to shaft-bottom heater through shaft-hole,after heating the liquid will flow back to the drum through shaft-hole divider.The structure of this heating method is easy with simple maintenance. It is possible to make choice between the electrical heating and steam heating modes,even the double supply of both steam and electricity is feasible while it is adjustable to control the temperature at the range from the normal temperature up to 80℃ with the precision at ±1℃,which could meet the demand for various processing needs.

We adopt intelligent controller or PLC touch screen together with frequency conversion function to make it possible for automatic rotation in positive and reverse direction,intermittent shutdown,single-direction rotation,forward/backward inching operation and so on.

The chain & chain wheel we adopt,being smooth with low vibration and low noise in driving,can stand long-term operation with low frequency of maintenance.

On the end of the drum is mounted with the toughened glass to enable the visual observation of the straining state inside the drum,which has such merits as resisting the mechanical impact,heating shock and being free from deformation or color changing.

We have perfect security protection system with protective cover(Full cover can be selected) and protective door which adopts electromechanical interlocking device to ensure operational safety.This drum has received the European CE safety certification.


TECHNICIAL PARAMETERS

Model & Size GZGS2-
80×40
GZGS2-
100×50
GZGS2-
120×60
GZGS2-
140×60
GZGS2-
160×60
GZGS2-
180×60
Diameter of drum mm 800 1000 1200 1400 1600 1800
Width of drum mm 400 500 600 600 600 600
Volume of drum l 150 310 560 760 1000 1280
Loading capacity kg 12 26 47 64 85 108
Drum speed rpm 0-25 0-25 0-25 0-20 0-20 0-20
Motor power kw 1.5 1.5 2.2 2.2 4 4
Heating power kw 4.5 6 6 6 6 9
Outlinedimension(Length) mm 1160 1480 1580 1700 1880 2200
Outline dimension(Width) mm 1200 1460 1560 1660 1660 1700
Outline dimension(Height) mm 1580 1700 1850 1950 2100 2200
Total weight t 0.4 0.6 0.7 0.8 1.2 1.6
